Chapter 9. Full Example

This example loads images from a directory and displays them in a rotating ellipse. You may click an image to bring it to the front. When the image has rotated to the front it will move up while increasing in size, and the file path will appear at the top of the window.

This is larger than the examples used so far, with multiple timelines and multiple behaviours affecting multiple actors. However, it's still a relatively simple example. A real application would need to be more flexible and have more functionality.

TODO: Make this prettier. Use containers to do that.

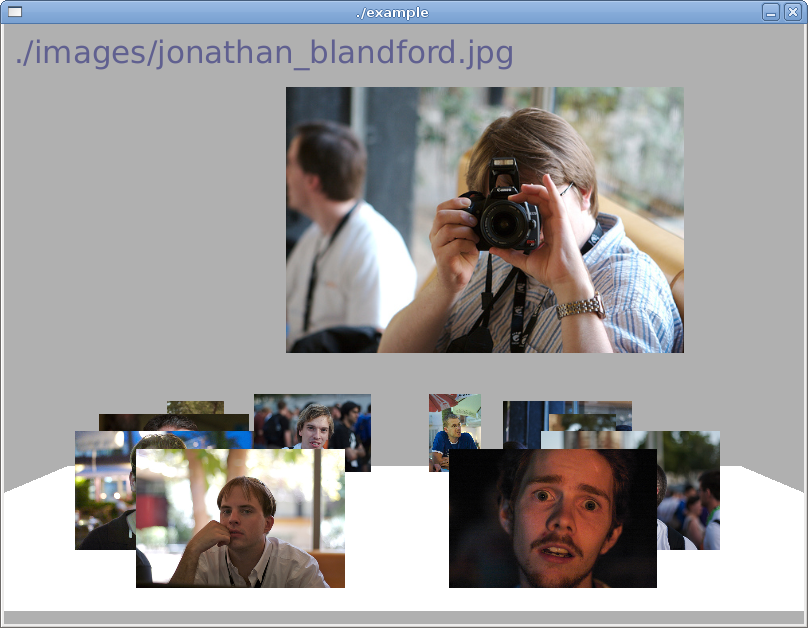

Figure 9.1. Full Example

Full Example

Source Code

File: main.py

import os
import sys

import clutter


# For showing the filename
label_filename = None

# For rotating all images around an ellipse
timeline_rotation = None

# For moving one image up and scaling it
timeline_moveup = None
behaviour_scale = None
behaviour_path = None
behaviour_opacity = None

# The y position of the ellipse of images
ELLIPSE_Y = 390
# The distance from front to back when it's rotated 90 degrees.
ELLIPSE_HEIGHT = 450
IMAGE_HEIGHT = 100

angle_step = 30


class Item(object):

    def __init__(self, actor, filepath, ellipse_behaviour=None):
        super(Item, self).__init__()
        self.actor = actor
        self.filepath = filepath
        self.ellipse_behaviour = ellipse_behaviour

    def __eq__(self, other):
        return self.filepath == other.filepath

    def __ne__(self, other):
        return not self.__eq__(other)


item_at_front = None
list_items = []


def on_foreach_clear_list_items(data, user_data):
    """Not necessary in Python"""


def scale_texture_default(texture):
    pixbuf_height = texture.get_size()[1]

    scale = IMAGE_HEIGHT / float(pixbuf_height) if pixbuf_height else 0
    texture.set_scale(scale, scale)


def load_images(directory_path):
    # Clear any existing images
    if not os.path.exists(directory_path):
        return

    # Clear any existing images
    global list_items
    list_items = []

    # Discover the images in the directory
    for image in os.listdir(directory_path):
        if not image.endswith('.jpg'):
            continue

        path = os.path.join(directory_path, image)

        # Try to load the file as an image
        actor = clutter.Texture(path)
        if actor:
            item = Item(actor, path)

            # Make sure that all images are shown with the same height
            scale_texture_default(item.actor)
            list_items.append(item)


def add_to_ellipse_behaviour(timeline_rotation, start_angle, item):
    if not timeline_rotation:
        return

    alpha = clutter.Alpha(timeline_rotation, clutter.EASE_OUT_SINE)
    item.ellipse_behaviour = clutter.BehaviourEllipse(alpha=alpha,
                               x=320, y=ELLIPSE_Y, # x, y
                               width=ELLIPSE_HEIGHT, height=ELLIPSE_HEIGHT, # width, height
                               start=start_angle, end=start_angle + 360)
    item.ellipse_behaviour.set_direction(clutter.ROTATE_CW)
    item.ellipse_behaviour.set_angle_tilt(clutter.X_AXIS, -90)
    item.ellipse_behaviour.apply(item.actor)


def add_image_actors(stage):
    x, y, angle = 20, 0, 0
    global list_items
    global timeline_rotation

    for item in list_items:
        # Add the actor to the stage
        stage.add(item.actor)

        # Set an initial position
        item.actor.set_position(x, y)
        y += 100

        # Allow the actor to emit events. By default only the stage does this.
        item.actor.set_reactive(True)

        # Connect signal handlers for events
        item.actor.connect('button-press-event', on_texture_button_press, item)

        add_to_ellipse_behaviour(timeline_rotation, angle, item)
        angle += angle_step

        item.actor.show()


def angle_in_360(angle):
    result = angle
    while result >= 360:
        result -= 360

    return result


# This signal handler is called when the item has finished
# moving up and increasing in size.
def on_timeline_moveup_completed(timeline):
    global timeline_moveup, behaviour_scale, behaviour_path, behaviour_opacity
    timeline_moveup = behaviour_scale = None
    behaviour_path = behaviour_opacity = None


# This signal handler is called when the items have completely
# rotated around the ellipse.
def on_timeline_rotation_completed(timeline):
    # All the items have now been rotated so that the clicked item is at the
    # front.  Now we transform just this one item gradually some more, and
    # show the filename.

    # Transform the image
    global timeline_moveup
    actor = item_at_front.actor
    timeline_moveup = clutter.Timeline(1000) # milliseconds
    alpha = clutter.Alpha(timeline_moveup, clutter.EASE_OUT_SINE)

    # Scale the item from its normal scale to approximately twice the normal scale
    scale_start = actor.get_scale()[0]
    scale_end = scale_start * 1.8

    global behaviour_scale
    behaviour_scale = clutter.BehaviourScale(scale_start, scale_start,
                                             scale_end, scale_end,
                                             alpha=alpha)
    behaviour_scale.apply(actor)

    # Move the item up the y axis
    knots = (
        (int(actor.get_x()), int(actor.get_y())),
        (int(actor.get_x()), int(actor.get_y() - 250)),
    )
    global behaviour_path
    behaviour_path = clutter.BehaviourPath(alpha, knots=knots)
    behaviour_path.apply(actor)

    # Show the filename gradually
    global label_filename
    label_filename.set_text(item_at_front.filepath)
    global behaviour_opacity
    behaviour_opacity = clutter.BehaviourOpacity(0, 255, alpha=alpha)
    behaviour_opacity.apply(label_filename)

    # Start the timeline and handle its "completed" signal so we can unref it
    timeline_moveup.connect('completed', on_timeline_moveup_completed)
    timeline_moveup.start()


def rotate_all_until_item_is_at_front(item):
    if not item:
        return

    global timeline_rotation
    timeline_rotation.stop()

    # Stop the other timeline in case that is active at the same time
    global timeline_moveup
    if timeline_moveup:
        timeline_moveup.stop()

    global label_filename
    label_filename.set_opacity(0)

    # Get the item's position in the list
    global list_items
    pos = list_items.index(item)
    assert pos != -1

    global item_at_front
    if not item_at_front and list_items:
        item_at_front = list_items[0]

    pos_front = 0
    if item_at_front:
        pos_front = list_items.index(item_at_front)
    assert pos_front != -1

    # pos_offset_before_start = pos_front - pos

    # Calculate the end angle of the first item
    angle_front = 180
    angle_start = angle_front - (angle_step * pos_front)
    angle_start = angle_in_360(angle_start)
    angle_end = angle_front - (angle_step * pos)

    angle_diff = 0

    # Set the end angles
    for this_item in list_items:
        # Reset its size
        scale_texture_default(this_item.actor)

        angle_start = angle_in_360(angle_start)
        angle_end = angle_in_360(angle_end)

        # Move 360 instead of 0
        # when moving for the first time,
        # and when clicking on something that is already at the front.
        if item_at_front == item:
            angle_end += 360

        this_item.ellipse_behaviour.set_angle_start(angle_start)
        this_item.ellipse_behaviour.set_angle_end(angle_end)

        if this_item == item:
            if angle_start < angle_end:
                angle_diff = angle_end - angle_start
            else:
                angle_diff = 360 - (angle_start - angle_end)

            # print "    debug: angle diff=%f" % angle_diff

        # TODO: Set the number of frames, depending on the angle.
        # otherwise the actor will take the same amount of time to reach
        # the end angle regardless of how far it must move, causing it to
        # move very slowly if it does not have far to move.
        angle_end += angle_step
        angle_start += angle_step

    # Set the number of frames to be proportional to the distance to travel,
    # so the speed is always the same
    pos_to_move = 0
    if pos_front < pos:
        count = len(list_items)
        pos_to_move = count + (pos - pos_front)
    else:
        pos_to_move = pos_front - pos

    timeline_rotation.set_duration(int(angle_diff * .2))

    # Remember what item will be at the fron when this timeline finishes
    item_at_front = item

    timeline_rotation.start()


def on_texture_button_press(actor, event, item):
    # Ignore the events if the timeline_rotation is running (meaning, if the objects are moving)
    # to simplify things
    global timeline_rotation
    if timeline_rotation and timeline_rotation.is_playing():
        print "on_texture_button_press(): ignoring"
        return False
    else:
        print "on_texture_button_press(): handling"

    rotate_all_until_item_is_at_front(item)
    return True


def main():
    stage_color = clutter.Color(176, 176, 176, 255) # light gray

    # Get the stage and set its size and color
    stage = clutter.Stage()
    stage.set_size(800, 600)
    stage.set_color(stage_color)

    # Create and add a label actor, hidden at first
    global label_filename
    label_filename = clutter.Text()
    label_color = clutter.Color(96, 96, 144, 255) # blueish
    label_filename.set_color(label_color)
    label_filename.set_font_name("Sans 24")
    label_filename.set_position(10, 10)
    label_filename.set_opacity(0)
    stage.add(label_filename)
    label_filename.show()

    # Add a plane under the ellipse of images
    rect_color = clutter.Color(255, 255, 255, 255) # white
    rect = clutter.Rectangle(rect_color)
    rect.set_height(ELLIPSE_HEIGHT + 20)
    rect.set_width(stage.get_width() + 100)
    # Position it so that its center is under the images
    rect.set_position(-(rect.get_width() - stage.get_width()) / 2,
                      ELLIPSE_Y + IMAGE_HEIGHT - (rect.get_height() / 2))
    # Rotate it around its center
    rect.set_rotation(clutter.X_AXIS, -90, 0, rect.get_height() / 2, 0)
    stage.add(rect)
    rect.show()

    # show the stage
    stage.connect("destroy", clutter.main_quit)
    stage.show_all()

    global timeline_rotation
    timeline_rotation = clutter.Timeline(2000) # milliseconds
    timeline_rotation.connect('completed', on_timeline_rotation_completed)

    # Add an actor for each image
    load_images("images")
    add_image_actors(stage)

    # timeline_rotation.set_loop(True)

    # Move them a bit to start with
    global list_items
    if list_items:
        rotate_all_until_item_is_at_front(list_items[0])

    # Start the main loop, so we can respond to events
    clutter.main()

    return 0


if __name__ == '__main__':
    sys.exit(main())
